Beşel Eye Bolt 6 mm (480 Pieces)

Beşel BA916 Eye Bolt – M6 (Box of 480)

Beşel BA916 Eye Bolt is a professional M6 diameter eye fastener used in hanging, fixing, and connection applications. Thanks to its eye portion, it allows for the secure connection of ropes, chains, hooks, or hanging apparatus; the screw portion provides a solid installation on wood, concrete, or metal surfaces. With its durable metal body, it shows reliable performance in load-bearing applications. This product is sold on a per-case basis containing 480 eye bolts; it is ideal for wholesale purchases, workshop stock, and hanging/fixing projects. M8 and M10 size options of the same series are also available.

Technical Specifications (BA916)

All Size, Dimension & Case Options

What is an Eye Bolt? Where is it Used?

• Hanging & Fixing: Objects are hung or fixed by attaching ropes, chains, hooks, or hanging apparatus to the eye section.
• Versatile Mounting: It can be mounted directly into wood, into concrete with a wall plug, or onto metal via welding or nut connection.
• Load Bearing: It safely carries static loads thanks to its metal body; it is used in both decorative and functional applications.
• Easy to Use: Installed with a standard screwdriver or wrench; no special tools required.
• Wholesale Cost Advantage: Series-based case packaging reduces the unit cost in large projects.

Size Selection Guide

• M6 (BA916): Light hanging applications, decorative objects, small lamps, light shelves.
• M8 (BA918): Medium load hanging, flower pots, medium-sized lamps, light equipment fixing.
• M10 (BA9110): Heavy load hanging, large lamps, industrial equipment, safety ropes.

Usage Areas

• Home & Decoration: Hanging chandeliers, flower pot hangers, decorative objects, fixing curtain rails.
• Workshop & Garage: Hanging hand tools, bicycle hangers, warehouse organization.
• Garden & Outdoor: Plant hangers, sunshade fixing, garden lamps.
• Commercial Areas: Store window hanging, sign fixing, fair stand assembly.
• Industrial: Hanging light equipment, safety rope connection, cable management.

Frequently Asked Questions

What do the A/B/C/D dimensions mean?

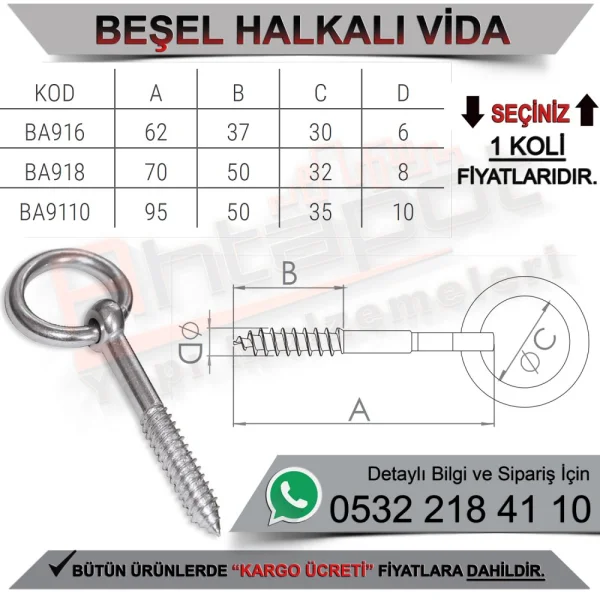

A: Total length (including eye). B: Screw length (threaded part). C: Eye inner diameter (the opening the material will pass through). D: Screw diameter (M6/M8/M10). These dimensions are critical for choosing the right size according to the mounting surface and hanging load.

Which size should I choose?

Make a choice based on the weight of the load to be hung and the mounting surface. M6 is suitable for light loads, M8 for medium loads, and M10 for heavy loads. It is recommended to use it in a way that does not exceed 50% of its capacity, leaving a safety margin.

Can it be mounted on concrete?

Yes. For concrete mounting, an appropriate wall plug (size 6 for M6, size 8 for M8, size 10 for M10) must be used. It can be screwed directly into wood. For metal surfaces, welding or a nut connection may be required.

Why are the case quantities different?

Case content varies according to size and weight. M6 and M8 models are sold in cases of 480 pieces, while the M10 model is sold in cases of 280 pieces. Please check the case quantity when ordering.

Can I order a mix of different sizes?

Only single-model orders are accepted on a per-case basis. For mixed-size requests, a separate case must be ordered for each model. You can contact us for special packaging requests in large projects.
