Beşel Open Piton 16x30 (4,000 Pieces)

Beşel BA1630 Open Piton – 16x30 mm (Case of 4,000)

Beşel BA1630 Open Piton is a professional hinge fastener measuring 16x30 mm, designed for the secure mounting of door hinges to the frame or leaf. Thanks to its open structure, it offers ease of installation, allowing the hinge pin to seat comfortably. It provides long-lasting performance due to its durable metal body and surface coating. This product is sold by the case containing 4,000 pieces; it is ideal for mass production, workshop inventory, and project-based supply. Size options of 18x60, 19x70, 20x80, 21x80, 21x100, 21x200, 22x130, 23x150, 24x175, and 24x200 mm from the same series are also available.

Technical Specifications (BA1630)

All Size, Dimension & Case Options

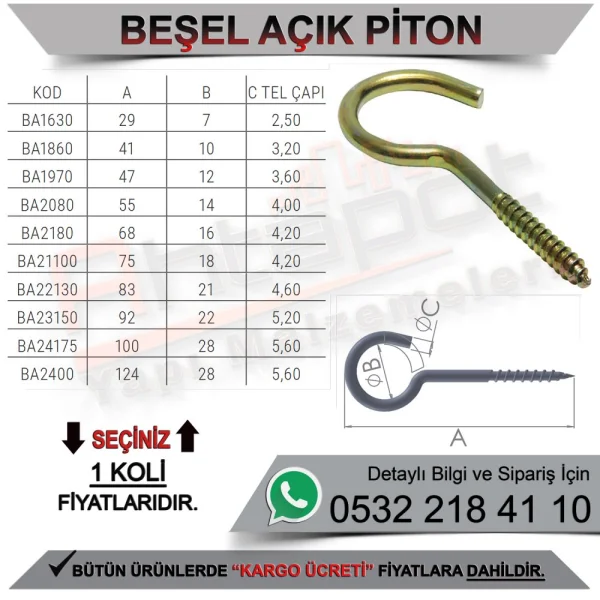

What is an Open Piton? What do A/B/C Dimensions Mean?

• Open Piton: A U or L-shaped metal fastener that allows the door hinge to be fixed by screwing it into the frame or leaf. The term "Open" refers to the design being non-enclosed so the hinge pin can be easily placed.
• A Dimension: Total outer height of the piton (seating depth in the hinge housing).
• B Dimension: Distance between screw holes or flange width (critical for mounting precision).
• C Dimension: Material thickness (determines the load-bearing capacity).

Why Beşel Open Piton?

• Precise Compatibility: Provides full compatibility with standard barrel and cylinder hinges; minimizes assembly errors.
• Wide Range of Sizes: 11 different sizes from 16x30 mm to 24x200 mm; options for every application from light interior doors to heavy commercial doors.
• Durable Metal Body: Carries the weight of the door for many years; does not bend or deform.
• Wholesale Cost Advantage: Bulk case packaging reduces unit costs in large projects.
• Open Design Convenience: Makes it easy to install and remove the hinge pin; shortens maintenance and replacement time.

Application Areas

• Door Production: Wood/MDF door hinge installation in mass production lines.
• Workshops & Carpentry: Custom door designs, repairs, and hinge replacements.
• Hotels & Hospitality: Guest room doors, staff areas, and back entrances.
• Offices & Public Buildings: Meeting rooms, classrooms, and administrative rooms.
• Commercial Areas: Store entrances, warehouse doors, and service areas.

Frequently Asked Questions

Which size should I choose?

Make your selection based on door weight, thickness, and hinge type. BA1630–BA1970 are recommended for light interior doors, BA2080–BA21100 for standard doors, and BA22130–BA24200 for heavy/commercial doors. It should be matched with existing hinge dimensions.

Are mounting screws included?

No. Mounting screws are not included in the package. You must separately procure screws suitable for the surface where the piton will be mounted (wood, MDF, metal frame). A screw size compatible with the C thickness should be selected.

Can I place mixed orders for different sizes?

Orders are accepted on a per-case basis for a single model. For mixed size requests, a separate case must be ordered for each model. You can contact us for special packaging requests in large projects.

Why are the case quantities different?

Case content varies based on size and weight. Small sizes (BA1630–BA1860) are sold in cases of 4,000 pieces, medium sizes in cases of 2,400–3,000 pieces, and large sizes in cases of 600–1,200 pieces. Please check the case quantity when ordering.

What is the piton material? Does it rust?

The product is manufactured from a metal alloy and protected with a surface coating. It is suitable for indoor use. Periodic checks are recommended for long life in humid environments. For outdoor or high-humidity areas, please look at stainless steel options.
