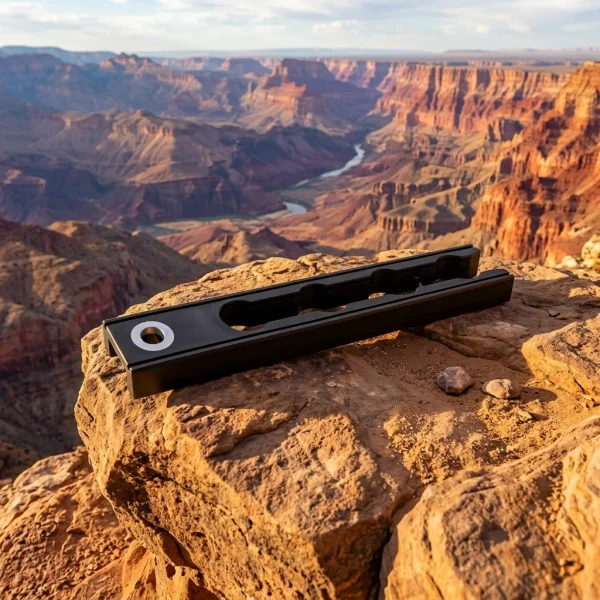

Glass Balcony Park Link (5-Hole) (300 Pieces)

5‑Hinge Glass Balcony Link Connector – Pack of 300

The 5‑Hinge Glass Balcony Link Connector (also known as the "Bakla" or hinge segment) is a critical guide and connection component that ensures glass panels move smoothly, stay aligned, and park correctly along the track in folding glass balcony systems. This component links adjacent glass sashes together, keeps them synchronised during opening and closing, and maintains neat, orderly stacking when fully retracted. Supplied in a wholesale pack of 300 units, it offers a cost‑effective solution optimised for high‑volume manufacturing and large‑scale projects.

Technical Specifications

• Product Type: Glass Balcony Hinge / Link Connector – 5‑Hole
• Material: High‑Strength Engineering Plastic (Polyamide) – resistant to wear, impact, and all weather conditions
• Structure: Segmented guide design with 5 connection holes
• Colour: Black (standard) – custom colours available on request
• Compatibility: Gold Series, BKS GLB, and similar folding glass balcony systems
• Function: Carries wheel assemblies, guides panels, maintains parked alignment
• Operating Temperature: -20 °C to +70 °C – suitable for all outdoor exposure
• Pack Quantity: 1 Pack = 300 Units

Applications

• New glass balcony fabrication – Gold, Pro Gold, GLB series folding systems
• Mass housing, residential compounds, and premium developments – consistent specification across multiple units
• Hotel, resort, and commercial building facade renovations
• Maintenance and replacement – renewing worn or broken connectors in existing installations
• Glass balcony repair and after‑sales service – ideal workshop stock item
• Terrace, veranda, and winter garden enclosures
• High‑volume production – low unit cost, reliable supply for fabricators

Product Advantages

• 5‑Hole Optimised Design: Distributes load across five connection points, reducing stress at each fixing and extending service life. Even weight distribution prevents sagging, twisting, and misalignment
• Durable Polyamide Construction: Resists UV radiation, rain, temperature extremes, and continuous friction without warping or degradation. Unlike metal equivalents, it will never rust, corrode, or rattle
• Smooth, Quiet Operation: Enables glass panels to glide effortlessly along the track without jamming, binding, or noise – delivering superior user comfort
• Precision Park Alignment: Keeps panels neatly stacked and evenly spaced when fully folded; prevents sashes from drifting out of line or striking one another during movement
• Easy Installation & Replacement: Secures quickly with screws and locating pins; individual segments can be swapped out without dismantling the entire system
• Cost‑Effective Supply: Bulk pack of 300 delivers a low unit price – an economical choice for large contracts and ongoing production
• Direct System Compatibility: Interchangeable with widely used 5‑hole system profiles; matches standard hole spacings and dimensions for straightforward replacement

Installation & Maintenance Guidelines

• Ensure pins, wheel axles, and fixing screws seat fully and firmly; loose connections accelerate wear
• Align pins and holes exactly during fitting – do not force components; proper alignment eliminates breakage risk
• Use the correct number of connectors per panel assembly; insufficient fixings cause instability and uneven loading
• Allow one panel to seat fully before moving the next; operating multiple panels prematurely overloads the links and leads to early failure
• Keep track channels free of dust, grit, and debris; foreign particles increase friction and accelerate component wear
• Avoid tar‑based or acidic lubricants – these degrade engineering plastics. Use silicone‑based dry lubricant only if necessary
• Inspect periodically; replace immediately if flexing, discolouration, or surface cracking appears – preventing secondary damage to panels and tracks

Frequently Asked Questions

What is the difference between 5‑hole, 3‑hole, and 7‑hole versions?
The hole count defines load capacity and system compatibility. The 5‑hole design is optimised for standard‑width bays and typical panel counts; 3‑hole suits narrower systems, while 7‑hole is used for longer runs and multi‑panel assemblies.

If this breaks, will the glass fall?
The connector guides and aligns – the main load‑bearing function rests with the wheel carriers and primary fixings. However, a broken connector causes misalignment, increases derailment risk, and should be replaced without delay.

Can I use this with other brands?
Yes – provided hole spacings and overall dimensions match your existing component. Always compare centre‑to‑centre measurements before ordering cross‑brand replacements.

Plastic means less durable – is that correct?
Specialised engineering polyamide has far higher strength and flexibility than standard plastics; it outlasts coated metal alternatives in outdoor environments – lighter, quieter, and completely corrosion‑proof.

How long should it last?
With correct installation and regular maintenance, expect 8–12 years of service. Shorten inspection intervals in high‑traffic commercial locations.
