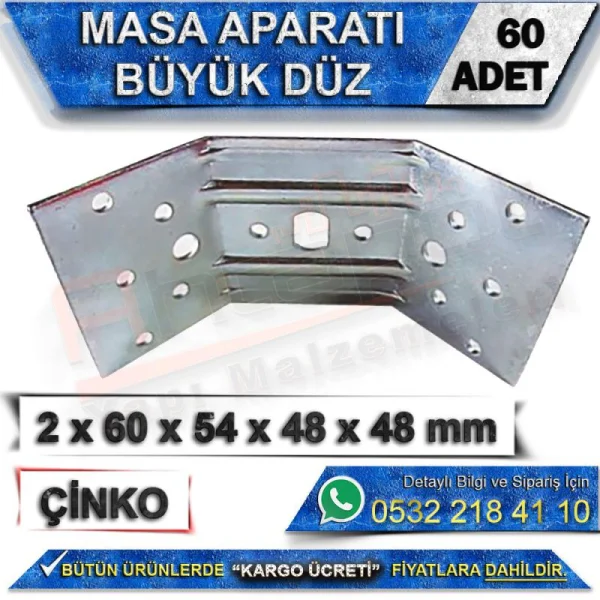

Large Flat Metal Table Apparatus 2x60x54x48x48 mm (60 Pieces)

Large Flat Table Bracket – 2×60×54×48×48 mm, Zinc‑Plated, Pack of 60

The Large Flat Metal Table Bracket is a heavy‑duty connection fitting designed to form a rigid, stable link between legs and frames in tables, side tables, and similar furniture. Manufactured at 2 mm thick with a 60 mm main body, 54 mm side‑arm span, and 48×48 mm leg mounting face. Its zinc‑plated finish delivers long‑term defence against rust and corrosion. The flat, right‑angle profile ensures legs stand perfectly vertical, eliminating wobble or movement. Priced per box of 60 units, it offers an economical solution for serial production and large‑scale projects.

Technical Specifications

• Product Type: Large Flat Table Bracket
• Thickness: 2 mm
• Main Body Length: 60 mm
• Side Arm Opening: 54 mm
• Leg Mounting Face: 48×48 mm
• Material: High‑Quality Steel
• Finish: Zinc‑Plated
• Colour: Silver
• Installation: Screw‑Fixed
• Compatibility: 40×40 mm and 50×50 mm square legs
• Pack Quantity: 1 Box = 60 Units
• Pricing: Price quoted per box

Applications

• Leg‑to‑frame connections for solid wood and plywood tables
• Reinforcement for side tables, bedside cabinets, and medium‑scale furniture
• Legs with square cross‑section: 40×40 mm, 45×45 mm, 50×50 mm
• Dining tables, work desks, and counter units
• Mass‑produced furniture manufacturing
• Repairing loose legs during renovation and refurbishment work
• Custom‑sized furniture designs

Product Advantages

• Heavy‑Duty Dimensions: Provides a broader contact area than standard small brackets; will not bend, warp, or deform under substantial load
• 2 mm Gauge: Delivers robust durability for medium‑ and heavy‑duty use; completely resolves table wobble
• 48×48 mm Mounting Face: Matches the most common square leg sizes perfectly; seats flush to the end of the leg and prevents shifting or play
• Zinc‑Plated Finish: Rust‑resistant and colour‑stable under normal indoor conditions; maintains a clean, professional appearance
• True Right‑Angle Design: Guarantees legs stand perfectly perpendicular to the floor; the table sits level and load is distributed evenly
• Multi‑Fixing Points: Multiple screw holes allow secure attachment at several points; prevents loosening or separation over time
• Simple Installation: No special tools required — mark positions and fix screws quickly
• Cost‑Effective 60‑Pack: Box pricing structure reduces the per‑unit cost for high‑volume production

Installation Guidelines

• Ensure the mating surfaces on both the leg underside and table frame are flat, clean, and solid
• Position the bracket over the leg end, centre it, and mark the screw positions
• Select suitable screws of a length appropriate to the material thickness
• Tighten screws gradually in a diagonal sequence; do not tighten from one side only
• Do not over‑tighten — this may split the material or distort the bracket
• For high‑load applications, install fixings from both sides where possible
• Use stainless‑steel screws in damp or humid environments
• Check and retighten screws periodically

Frequently Asked Questions

How does this differ from the small table bracket?
This model is larger and wider; the 48×48 mm mounting face is ideal for 50 mm square legs and offers higher load capacity.

Which leg sizes does it fit?
Best suited to 40×40 mm, 45×45 mm, and 50×50 mm square legs. Choose the compact version for smaller legs.

Will it rust?
The zinc plating provides adequate protection for indoor use. For areas with constant moisture, the stainless‑steel variant is recommended.

Are mounting screws included?
No — the box contains only the brackets. Fixings must be purchased separately to suit your material type.

How is pricing structured?
The listed price applies to one box of 60 units. Contact us for quantity pricing.
