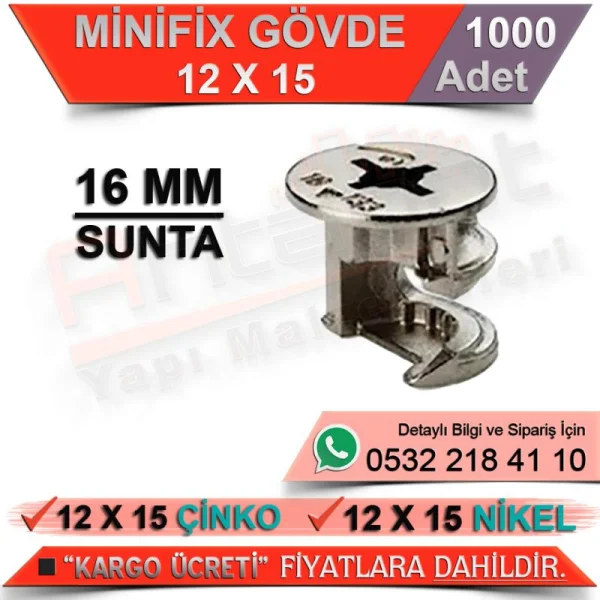

Minifix Body 16 mm 12x15 Nickel (1000 Pieces)
The Minifix body, measuring 16 mm, features a 12x15 mm footprint, is nickel-plated, and is sold in packs of 1000 pieces.
Minifix Body 16 mm 12x15 – Nickel (1,000 Pieces)
Minifix Body 16 mm 12x15 is a nickel-plated eccentric connector used in panel joints in furniture manufacturing, with a 15 mm outer diameter and a 12 mm insertion depth. With its special compatibility for a 16 mm hole diameter, it offers a firm fit and an aesthetic appearance. Each box contains 1,000 pieces; it is ideal for series production and wholesale use.
Technical Specifications (12x15 / 16 mm Hole – Nickel)
| Brand | Standard / Delta |
|---|---|
| Product Type | Minifix Eccentric Body |
| Body Outer Diameter | 15 mm |
| Required Hole Diameter for Application | 16 mm |
| Body Depth | 12 mm |
| Recommended Panel Thickness | ≥ 16 mm |
| Package Contents | 1,000 Pieces |
| Weight of 1 Box | 2.10 kg |
| Material | Zinc alloy |
| Surface Coating | Nickel |
| Tightening Angle | Half turn (~180°) |
| Pull Distance | ~5 mm |
| Sales Unit | 1 Box (1,000 Pieces) |
| Compatibility | All Minifix systems drilling a 16 mm hole |
All Size & Package Information
| Product Code | Body Size | Hole Diameter | Pieces / Box | Box Weight | Coating |
|---|---|---|---|---|---|
| MF-1215-16N | 12x15 mm | 16 mm | 1,000 | 2.10 kg | Nickel |
| MF-1215-15N | 12x15 mm | 15 mm | 1,000 | 2.05 kg | Nickel |
| MF-1215-16Z | 12x15 mm | 16 mm | 1,000 | 2.10 kg | Zinc |
Product Highlights & Features
The nickel-plated Minifix body provides precise 16 mm alignment and a compact 12×15 mm profile, ensuring strong and durable connections in furniture assemblies. Its standardized design enables quick assembly and reliable performance, while the 1000-piece pack offers high efficiency for professional use.
