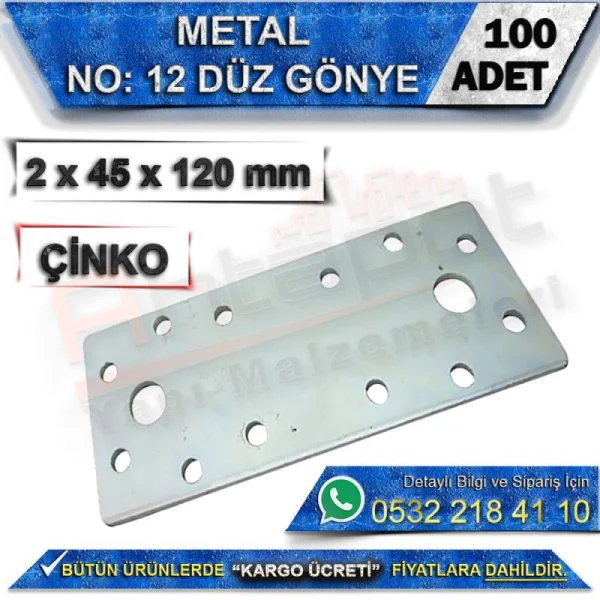

No: 12 Flat Bracket 2x45x120 mm (100 Pieces)

No:12 Flat Bracket – 2x45x120 mm Zinc Coating (100 Pieces)

No:12 Flat Bracket is a professional connection element that securely connects two pieces at a right angle (90°) in furniture and structural elements, with dimensions of 2x45x120 mm. It is the largest and most powerful model in the series. With its zinc coating, it is resistant to corrosion and provides long-lasting performance in indoor applications. The 2 mm sheet thickness, 45 mm extra-wide short wing, and 120 mm long wing design provide maximum grip on both vertical and horizontal surfaces, ensuring top-level safety in very heavy constructions, large industrial tables, and critical structural connections. This product is sold in packs of 100 brackets and is ideal for wholesale purchases, workshop stock, and serial production.

Technical Specifications

Comparison of All Bracket Series

What Does the Dimension Notation Mean?

• 2 mm: Sheet thickness. Determines the bending resistance and load capacity of the bracket.
• 45 mm: Short wing length. The widest short wing in the series; provides maximum screw grip on vertical surfaces.
• 120 mm: Long wing length. The longest wing in the series; provides maximum grip area on horizontal surfaces. Covers 140% more surface area than No:6.
• No:12: Product series/size code. May vary by manufacturer; choose based on mm measurements.

No:11 vs No:12: What's the Difference?

• Short Wing: No:12 provides 12.5% more grip area on vertical surfaces than No:11, thanks to its 45 mm short wing.
• Total Grip Area: Both models have a 120 mm long wing. However, No:12 provides maximum total connection surface due to its wider short wing.
• Usage Scenario: No:11 is ideal for applications requiring maximum grip on horizontal surfaces. No:12 is recommended for both vertical and horizontal surfaces requiring maximum grip and critical connections.

Why No:12 Flat Bracket?

• Largest in the Series: 45x120 mm wing dimensions allow for maximum screw usage on both vertical and horizontal surfaces, preventing bending under heavy loads.
• Dual-Direction Maximum Grip: The combination of a wide short wing and long wing distributes stress at the connection point most effectively.
• Corner Reinforcement: Connecting two pieces at a right angle (90°) prevents swaying and deformation.
• Zinc Protection: Galvanized coating provides resistance to corrosion in humid environments.
• Wholesale Cost Advantage: 100-piece packs reduce unit costs in serial production.

Areas of Use

• Heaviest Constructions: Industrial under-roof, heavy wooden frame, large box/case assembly
• Large Industrial Tables: Heavy workbenches, assembly lines, packaging units
• Commercial Furniture: Large conference tables, hotel lobby furniture, store display systems
• Special Projects: Architectural wooden structures, restoration, custom-designed heavy furniture
• Critical Connections: Seismic safety-requiring structural connections, high-vibration environments

Frequently Asked Questions

What applications is the No:12 bracket suitable for?

The 45 mm short wing and 120 mm long wing provide maximum safety in the heaviest loads and critical structural connections. It is recommended for industrial workbenches, heavy commercial furniture, large conference tables, and structural frame connections. For standard heavy loads, No:8–No:11 may be sufficient.

How do I choose between No:11 and No:12?

Both models have a 120 mm long wing. The difference is in the short wing: No:11 has 40 mm, and No:12 has 45 mm. For applications requiring more screw grip and absolute maximum safety in the heaviest/critical connections, No:12 is preferred. For horizontally focused applications, No:11 is sufficient.

Can zinc coating be used outdoors?

Zinc (galvanized) coating is suitable for indoor and semi-outdoor (covered terrace, under-roof) use. For open outdoor applications with direct rain/sun exposure, stainless steel or thicker galvanized models are recommended.

Are mounting screws included?

No. Mounting screws are not included in the package. You need to obtain screws suitable for the material (wood, MDF, plywood) separately. The screw size should be shorter than the sheet thickness (2 mm).

How do I choose the right bracket size?

Choose based on the expected load at the connection point, the width of the frame/table, and the level of criticality. The general rule is to choose a bracket size that covers at least 60% of the frame/table width. For the heaviest and most critical connections, always prefer the largest size (No:12).
