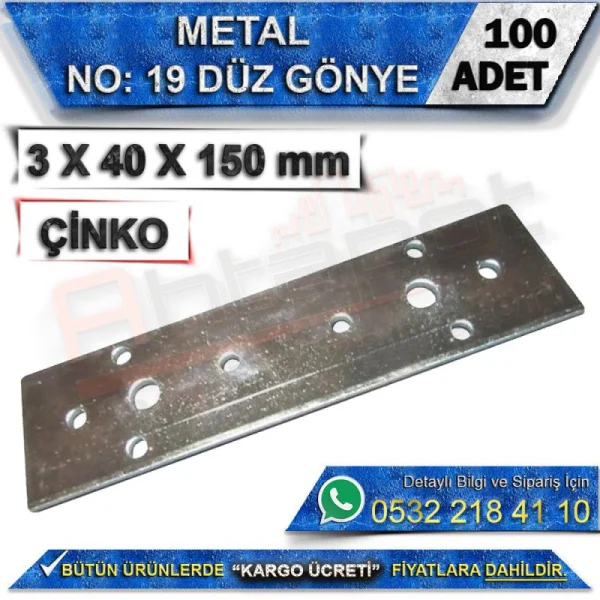

No: 19 Straight Angle Bracket 3X40X150 mm (100 Pieces)

No. 19 Flat Brace – 3 × 40 × 150 mm, Box of 100

No. 19 Flat Braces are thick, long‑body joining plates designed for heavy‑duty connections, large furniture projects, and thick‑material assemblies. With a 3 mm thickness, 40 mm width, and 150 mm length, they spread load over a broad area and resist bending or deformation even under substantial sustained weight. The flat profile fits neatly at beam joints, large frame reinforcement points, and long‑span panel connections. Supplied in a pack of 100, they offer economical stock management for building‑scale projects and heavy‑duty furniture manufacture.

Technical Specifications

• Type: No. 19 Flat Brace — Long‑Body Heavy‑Duty Joining Plate
• Thickness: 3 mm
• Width: 40 mm
• Length: 150 mm
• Material: High‑Quality Metal Alloy
• Finish: Zinc‑Plated — Corrosion & Rust‑Resistant
• Hole Diameter: Approx. 5 mm (standard screw fit)
• Number of Holes: 4 — arranged in two parallel rows
• Colour: Silver / Zinc
• Pack Quantity: 100 per Box

Applications

• Timber beam and load‑bearing structural frame connections
• Long‑span joints for large tables, workbenches, and storage units
• Wide‑opening connections in plywood, solid timber, and thick panels
• Timber‑structure partition walls and support systems
• Reinforcement points for large frames, doors, and joinery
• Custom‑built heavy‑duty furniture production
• Repair of damaged or weakened long‑span joints during renovation
• Residential building and commercial fit‑out projects

Product Advantages

• 3 mm Extra‑Thick Body: Noticeably stiffer than standard 2 mm braces; will not bend or develop permanent deformation under heavy loads
• 150 mm Long Grip Span: Connects widely separated points; distributes force evenly and prevents stress concentration at the joint centre
• 40 mm Moderate Width: Enables four‑point fixing; eliminates rotation and slipping, and works comfortably even in confined spaces
• Four‑Point Security: Dual‑row fixing minimises loosening over time — the connection stays firm for years
• Zinc‑Plated Finish: Rust‑resistant indoors; no discolouration, maintains a clean, neat appearance
• Simple Installation: No special tools required; fasten with correctly sized screws in seconds
• Dual‑Function Design: Acts as both connector and structural reinforcement in one piece — no separate components needed
• Convenient Bulk Pack: Easy stock supply for large projects; low unit cost delivers an economical solution

Installation Guidelines

• Ensure the mounting surface is flat, clean, and structurally sound; uneven seating will disrupt load distribution
• Mark the joint position; centre the plate so it bears evenly across both mating members
• Select suitable fasteners: use wood screws with 5 mm head diameter; choose longer screws for thick or dense materials
• Tighten progressively in a crossing pattern; do not fully tighten until all screws are fully engaged
• Avoid over‑tightening — threads may strip or the plate may distort
• Install additional plates for heavier loads; use symmetric parallel pairs rather than a single line
• Use stainless‑steel screws in damp locations such as kitchens and bathrooms
• Loosen screws gradually in a cross pattern during disassembly to avoid straining or damaging the base material

Frequently Asked Questions

How does this differ from No. 20?
Both are 3 mm thick and 150 mm long — No. 20 is 60 mm wide with six holes, while No. 19 is 40 mm wide with four holes. Choose No. 19 where space is limited; choose No. 20 where a broader grip area is needed.

What weight can it support?
Extra thickness plus four‑point fixing give higher capacity than standard 2 mm braces. Suitable for reliable use in medium‑ and heavy‑duty applications when properly installed.

Will it rust?
Zinc plating provides adequate protection for indoor use. For exterior or persistently damp environments, the stainless‑steel version is recommended.

Are other sizes available?
Yes — options vary in thickness, width, and length. Select the dimensions that best match your application.

Are screws included?
No — braces only. Purchase fixings separately, matched to your material type and load requirements.
