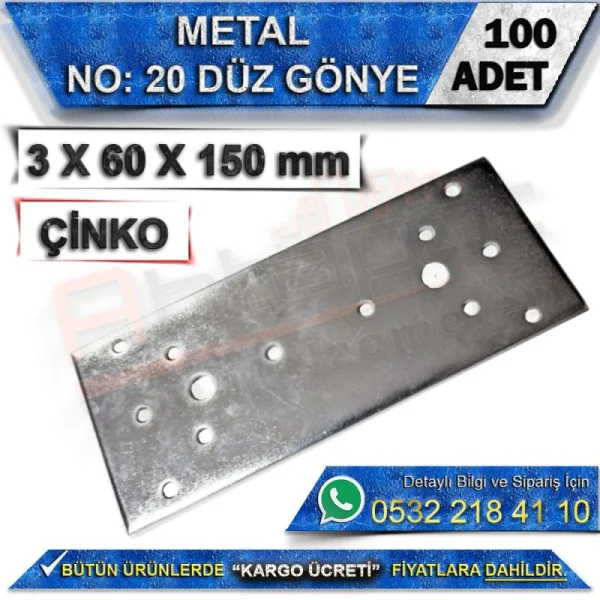

No: 20 Flat Angle Bracket 3X60X150 mm (100 Pieces)

No. 20 Flat Brace – 3 × 60 × 150 mm, Box of 100

No. 20 Flat Braces are thick, wide‑format special joining plates engineered for maximum‑strength heavy‑duty connections, large‑scale timber construction, and thick‑material assemblies. With a 3 mm thickness, 60 mm width, and 150 mm length, they spread load across an exceptionally broad area and resist bending or distortion even under substantial sustained weight. The flat profile works effectively at large panel joints, load‑bearing beam reinforcements, and heavy frame connection points. Supplied in a pack of 100, they provide economical stock management for building‑scale projects and heavy‑duty furniture production.

Technical Specifications

• Type: No. 20 Flat Brace — Heavy‑Duty Wide Joining Plate
• Thickness: 3 mm
• Width: 60 mm
• Length: 150 mm
• Material: High‑Quality Metal Alloy
• Finish: Zinc‑Plated — Corrosion & Rust‑Resistant
• Hole Diameter: Approx. 5 mm (standard screw fit)
• Number of Holes: 6 — arranged in two parallel rows
• Colour: Silver / Zinc
• Pack Quantity: 100 per Box

Applications

• Load‑bearing timber beams and main structural frame connections
• Heavy‑duty joints for large tables, workbenches, and storage units
• Wide‑surface joins in solid timber, plywood, and LVL panels
• Timber‑structure partition walls and support systems
• Reinforcement points for large frames, door assemblies, and joinery
• Custom‑built heavy‑duty furniture manufacturing
• Repair of damaged or weakened large‑scale joints during renovation
• Residential building and commercial fit‑out projects

Product Advantages

• 3 mm Extra‑Thick Body: Noticeably stiffer than standard 2 mm braces; will not bend or develop permanent deformation under heavy loads
• 60 mm Wide Format: Distributes force across six separate fixing points; minimises stress at the joint and eliminates the risk of base material splitting
• 150 mm Long Grip Span: Connects widely separated points; prevents dangerous stress concentration at the joint centre and completely removes wobble and loosening over time
• Six‑Point Security: Dual‑row fixing; rotation, slip, and gradual loosening are reduced to near zero — the connection remains rigid for its entire service life
• Zinc‑Plated Protection: Resists rust indoors for decades; no tarnishing, maintains a clean, professional finish
• Simple Installation: No special tools required; fasten with correctly sized screws in seconds
• Dual Function Design: Performs as both connector and structural reinforcement in a single piece — no separate components needed
• Convenient Bulk Pack: Simplified stock holding for large contracts; low unit cost delivers an economical long‑term solution

Installation Guidelines

• Ensure the mounting surface is flat, clean, and structurally sound; uneven seating will disrupt load distribution
• Mark the joint position; centre the plate so it bears evenly across both mating members
• Select suitable fasteners: use wood screws with 5 mm head diameter; choose longer, thicker screws when fixing into dense or thick material
• Tighten progressively in a crossing pattern; do not fully tighten until all screws are fully engaged
• Avoid over‑tightening — threads may strip or the plate may distort
• Install additional plates for heavier loads; use symmetric parallel pairs rather than a single line
• Use stainless‑steel screws in damp locations such as kitchens and bathrooms
• Loosen screws gradually in a cross pattern during disassembly to avoid straining or damaging the base material

Frequently Asked Questions

How does this differ from other models?
Most braces are 2 mm thick and shorter in length. No. 20 delivers the highest level of durability — 3 mm thick, 60 mm wide, and 150 mm long — and is the primary choice for heavy‑duty structures and thick‑material connections.

What weight can it support?
Extra thickness plus six‑point fixing provide far greater capacity than standard braces. Suitable for reliable use even under sustained heavy loads when properly installed on sound base material.

Will it rust?
Zinc plating provides adequate protection for indoor use. For exterior or persistently damp environments, the stainless‑steel version is recommended.

Are other sizes available?
Yes — options vary in thickness, width, and length. Select the dimensions that best match your application.

Are screws included?
No — braces only. Purchase fixings separately, matched to your material type and load requirements.
