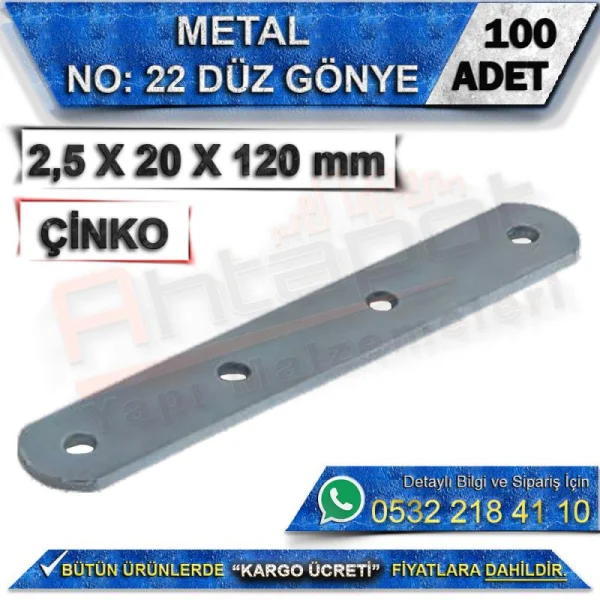

No: 22 Flat Corner Bracket 2,5X20X120 mm (100 Pieces)

No. 22 Flat Brace – 2.5 × 20 × 120 mm, Box of 100

No. 22 Flat Braces are thick, durable joining plates designed to create long‑span connections in heavy‑duty furniture, timber construction, and high‑strength assembly work. With a 2.5 mm thickness, 20 mm width, and 120 mm overall length, they spread load across a broad area and eliminate wobble and loosening at medium‑ and large‑scale joints. The flat profile fits neatly along beam extensions, frame intersections, and panel joints. Supplied in a pack of 100, they offer economical stock management for workshops and projects.

Technical Specifications

• Type: No. 22 Flat Brace / Long‑Body Joining Plate
• Thickness: 2.5 mm
• Width: 20 mm
• Length: 120 mm
• Material: High‑Quality Metal Alloy
• Finish: Zinc‑Plated — Corrosion & Rust‑Resistant
• Hole Diameter: Approx. 5 mm (standard screw fit)
• Number of Holes: 4 — arranged in two rows at each end
• Colour: Silver / Zinc
• Pack Quantity: 100 per Box

Applications

• Large furniture frames and structural assemblies
• Long beams, table tops, and cabinet body connections
• Wide‑surface joints for plywood, particleboard, and thick solid panels
• Reinforcement for window, door, and joinery frames
• Interior partition walls and support systems
• Custom‑built and heavy‑duty furniture production
• Repair and reinforcement of weakened joints during renovation
• Mass‑production and medium‑to‑large‑scale projects

Product Advantages

• 2.5 mm Extra‑Thick Body: Stiffer and more robust than standard 2 mm braces; will not bend or deform under heavy loads
• 120 mm Long Span: Joins widely separated points; distributes force evenly and prevents stress build‑up at the joint centre
• Four‑Point Security: Two‑row end fixing minimises rotation, slipping, and loosening — the connection stays firm for years
• Zinc‑Plated Finish: Rust‑resistant indoors; no discolouration, maintains a clean, neat appearance
• Balanced 20 mm Width: Proportioned to match the long plate; delivers a secure hold against both lateral and vertical forces
• Simple Installation: No special tools required; fasten with suitable screws in seconds
• Dual Function: Acts as both connector and reinforcement in one piece — no separate parts needed
• Convenient Bulk Pack: Easy stock supply for projects; low unit cost provides an economical solution

Installation Guidelines

• Ensure the mounting surface is flat, clean, and structurally sound
• Mark the joint location; centre the brace so it bears evenly on both mating components
• Select suitable fasteners: use wood screws with 5 mm head diameter; choose longer screws for thicker materials
• Tighten gradually in a crossing pattern; do not fully tighten until all screws are fully seated
• Avoid over‑tightening — material may split or the plate may distort
• Use additional braces for heavier loads; install symmetric parallel pairs rather than a single line
• Use stainless‑steel screws in damp locations such as kitchens and bathrooms
• Loosen screws gradually in a cross pattern during disassembly to avoid straining the base material

Frequently Asked Questions

How does this differ from other numbered models?
No. 23 is 160 mm long; No. 22 is 120 mm. No. 22 offers a more compact, cost‑effective fit for medium‑span connections; choose No. 23 for longer spans.

What weight can it support?
Extra thickness and four‑point fixing give higher capacity than standard 2 mm braces. Suitable for reliable heavy‑duty use when mounted on sound base material.

Will it rust?
Zinc plating provides adequate protection for indoor use. For exterior or persistently damp environments, the stainless‑steel version is recommended.

Are other sizes available?
Yes — lengths include 60 mm, 80 mm, 100 mm, and 160 mm; widths also offered in 16 mm, 25 mm, 30 mm, and 40 mm.

Are screws included?
No — braces only. Purchase fixings separately to suit your material type.
