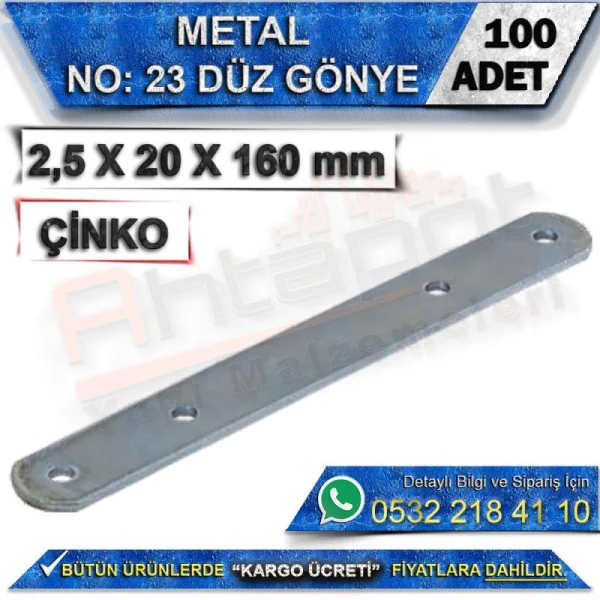

No: 23 Straight Angle Bracket 2.5X20X160 mm (100 Pieces)

No. 23 Flat Brace – 2.5 × 20 × 160 mm, Box of 100

No. 23 Flat Braces are heavy‑duty, long‑body special joining plates engineered for maximum‑strength connections in heavy‑load structures, large furniture projects, and timber frame applications. With a 2.5 mm thickness, 20 mm width, and 160 mm overall length, they spread force over an exceptionally broad area, completely eliminating bending, wobble, and loosening at long‑span joints. The flat profile installs cleanly on beam extensions, large frame assemblies, and long‑span panel connections. Supplied in a pack of 100, they offer practical, cost‑effective stock management for building‑scale projects and heavy‑duty furniture manufacture.

Technical Specifications

• Type: No. 23 Flat Brace — Heavy‑Duty Long Flat Joining Plate
• Thickness: 2.5 mm
• Width: 20 mm
• Length: 160 mm
• Material: High‑Quality Steel
• Finish: Zinc‑Plated — Corrosion & Rust‑Resistant
• Hole Diameter: Approx. 5 mm (standard screw fit)
• Number of Holes: 4 — arranged in two rows at each end
• Colour: Silver / Zinc
• Pack Quantity: 100 per Box

Applications

• Main beam connections in timber homes and prefabricated structures
• Long‑span joints for large tables, benches, and storage units
• Wide‑surface panel joins in plywood, LVL, and solid timber
• Reinforcement for window walls, large door frames, and joinery
• Interior partition walls and load‑bearing timber systems
• Custom‑built heavy‑duty furniture production
• Strengthening weakened long‑span joints during renovation
• Large‑scale residential and building construction projects

Product Advantages

• 2.5 mm Extra‑Thick Body: Stiffer and more resistant than standard 2 mm braces; will not bend, flex, or permanently deform under heavy sustained loads
• 160 mm Maximum Length: Bridges widely separated points; distributes load to the farthest edges and prevents dangerous stress concentration at the joint centre
• Four‑Point Security: Two‑row end fixing; rotation, slip, and loosening are virtually eliminated — performance stays consistent for the full service life
• Zinc‑Plated Protection: Rust‑resistant indoors for decades; no tarnishing, maintains a clean, professional finish
• Balanced 20 mm Width: Proportioned to match the long body; delivers reliable resistance to both lateral and vertical forces
• Straightforward Installation: No special tools — secure with correctly sized screws in seconds
• All‑in‑One Function: Acts as both connector and structural reinforcement in a single piece — no separate components required
• Economical Bulk Pack: Simplified stock supply for large contracts; low unit cost delivers excellent long‑term value

Installation Guidelines

• Confirm the mounting surface is flat, clean, and structurally sound; uneven seating will disrupt load distribution
• Mark the joint position; centre the brace so it bears evenly across both mating members
• Select suitable fasteners: wood screws with 5 mm head diameter or dowel‑and‑screw assemblies; use longer screws when fixing into thick timber
• Tighten gradually in a crossing pattern; do not fully tighten until all screws are fully seated
• Avoid over‑tightening — threads may strip or the plate may distort
• Install additional braces for heavier loads; use symmetric parallel pairs rather than a single line
• Use stainless‑steel screws in persistently damp or exterior locations such as kitchens, bathrooms, and facades
• Loosen screws gradually in a cross pattern during disassembly to avoid straining the base material

Frequently Asked Questions

How does this differ from other numbered models?
Standard braces are typically 2 mm thick and 110 mm or shorter. No. 23 is the largest and most robust option — 2.5 mm thick and 160 mm long — and is specified for heavy‑duty structures and long‑span applications.

What weight can it support?
Extra thickness plus four‑point fixing give significantly higher capacity than shorter braces of the same width. Reliable for permanent heavy loads when mounted on sound base material.

Will it rust?
Zinc plating provides sufficient protection for indoor use. For exterior or constantly damp environments, the stainless‑steel version is recommended.

Are other sizes available?
Yes — lengths include 60 mm, 80 mm, 100 mm, and 120 mm; widths also offered in 16 mm, 25 mm, 30 mm, and 40 mm.

Are screws included?
No — braces only. Purchase fixings separately, matched to your material and load requirements.
