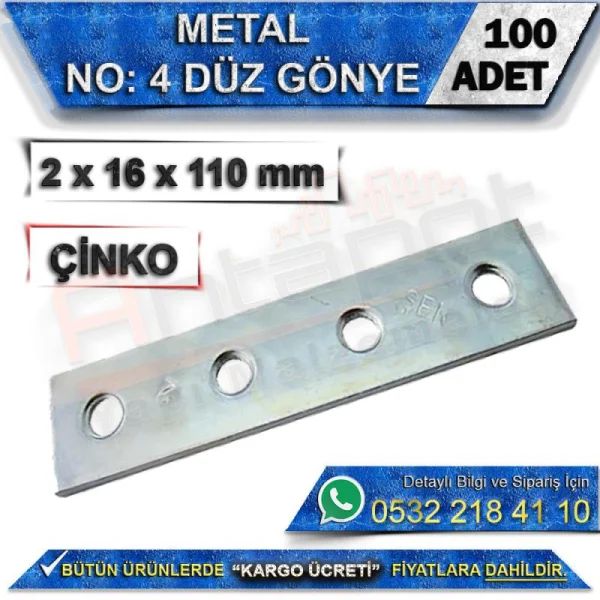

No: 4 Flat Bracket 2x16x110 (100 Pieces)

No. 4 Flat Brace – 2 × 16 × 110 mm, Box of 100

No. 4 Flat Braces are the longest heavy‑duty joining plates in the range, engineered to span wide gaps and deliver maximum reinforcement for heavy‑load frames and structural joints in furniture manufacture, timber construction, and large‑scale assembly. With a 2 mm thickness, 16 mm width, and 110 mm overall length, they distribute force across the broadest possible area for unshakeable joint integrity. The flat profile fits neatly along panel edges, within extended frame sections, and wherever a long, straight, low‑profile reinforcement run is required. Supplied in a pack of 100, they provide cost‑effective stock for major building projects and high‑volume workshops.

Technical Specifications

• Type: No. 4 Flat Brace / Flat Joining Plate
• Thickness: 2 mm
• Width: 16 mm
• Length: 110 mm
• Material: High‑Quality Steel
• Finish: Zinc‑Plated — Corrosion & Rust‑Resistant
• Hole Diameter: Approx. 4–5 mm (standard screw fit)
• Number of Holes: 2 (one at each end)
• Colour: Silver / Zinc
• Pack Quantity: 100 per Box

Applications

• Extra‑wide span joints in large furniture frames and assemblies
• Intermediate reinforcement for long beams, table tops, and cabinet bodies
• Full‑size panel joins in plywood, particleboard, and MDF structures
• Heavy‑duty strengthening of window, door, and joinery frames
• High‑capacity shelving and industrial storage units
• Structural connections in timber homes and prefabricated buildings
• Restoring heavily worn or fractured joints during renovation
• Custom‑built and heavy‑duty furniture production

Product Advantages

• 110 mm Maximum Length: The longest reach in the series — extends beyond No. 1, No. 2, and No. 3; spreads load to the farthest points and completely guards against flex, twist, or vibration at the joint
• Slim Flat Profile: Works in confined spaces, along edges, and inside frame extensions where angle brackets cannot be accommodated
• Robust Steel Construction: 2 mm gauge plate; remains rigid and holds firm even under substantial loads, retaining its original tension for years
• Zinc‑Plated Protection: Rust‑resistant indoors; no discolouration, maintains a clean, professional appearance
• Dual‑Hole Stability: Immune to rotation and slipping far better than single‑hole fixings; alignment stays true and constant
• Universal Compatibility: Direct fit with standard screws and furniture hardware used throughout the industry
• Quick & Simple Fit: No special tools — secure with correctly sized screws in seconds
• Value Bulk Pack: Convenient stock supply for large contracts; low unit cost delivers excellent long‑term economy

Installation Guidelines

• Verify the mounting surface is flat, clean, and structurally sound
• Mark the joint position; centre the brace so it makes full, even contact with both mating components
• Select appropriate fasteners: wood screws with 3–4 mm head diameter for timber; match shank to the 4–5 mm holes
• Confirm alignment before fully tightening; do not over‑tighten — wood may split or the plate may distort
• Install additional braces for heavy loads; use parallel rows rather than relying on a single line
• Space multiple braces evenly to distribute weight uniformly across the joint
• Use stainless‑steel screws in persistently damp areas such as kitchens and bathrooms
• Loosen screws gradually in a cross pattern during disassembly to avoid straining or damaging the timber

Frequently Asked Questions

How does this compare to the other numbered models?
No. 1 = 50 mm; No. 2 = 70 mm; No. 3 = 90 mm; No. 4 = 110 mm. Longer length means broader load distribution and greater stiffness — select No. 4 for the largest, heaviest structures.

What weight can it support?
Capacity depends on screw size, quantity, and base material. As the longest plate, it spreads load over the widest area, making it the most robust option under equivalent conditions.

Will it rust?
Zinc plating provides sufficient protection for indoor use. For exterior or constantly damp locations, choose the stainless‑steel version.

Are other sizes available?
Yes — lengths include 50 mm, 70 mm, 90 mm, and 120 mm; widths also offered in 12 mm, 20 mm, and 25 mm.

Are screws included?
No — the pack contains braces only. Purchase fixings separately, matched to your material type.
