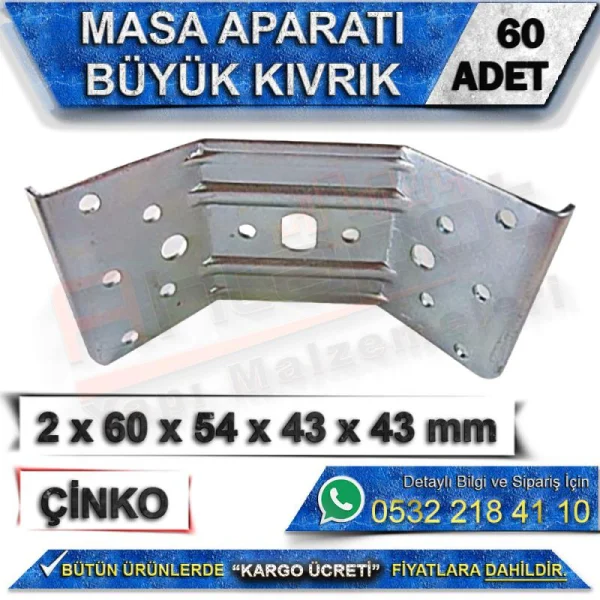

Table Bracket Large Curved 2x60x54x43x43 mm (60 Pieces)

Large Curved Table Bracket – 2×60×54×43×43 mm, Zinc‑Plated, Pack of 60

The Large Curved Metal Table Bracket is a heavy‑duty connection fitting designed to form a rigid link between leg and frame while its curved profile wraps around the leg end for extra grip. Manufactured at 2 mm thick with a 60 mm main body, 54 mm side‑arm span, and 43×43 mm leg mounting face. Curved edges fully enclose the leg end to eliminate slipping or wobble entirely; zinc‑plated finish provides long‑term defence against rust and corrosion. Priced per box of 60 units, it offers an economical solution for serial production and large‑scale projects.

Technical Specifications

• Product Type: Large Curved Table Bracket
• Thickness: 2 mm
• Main Body Length: 60 mm
• Side Arm Opening: 54 mm
• Leg Mounting Face: 43×43 mm
• Profile: Curved edges, wraps around leg end
• Material: High‑Quality Steel
• Finish: Zinc‑Plated
• Colour: Silver
• Installation: Screw‑Fixed
• Compatibility: 40×40 mm square legs
• Pack Quantity: 1 Box = 60 Units
• Pricing: Price quoted per box

Applications

• Tables and side tables with 40×40 mm square wooden legs
• Dining tables, work desks, and counter units
• Leg connections for bedside cabinets, cupboards, and medium‑scale furniture
• Furniture made from plywood, solid timber, and particleboard
• Mass‑produced furniture manufacturing
• Repairing loose legs during renovation and refurbishment
• Custom‑sized furniture designs

Product Advantages

• Curved Enclosing Design: Outperforms flat versions; wraps the leg end from both sides to stop shifting and play completely — the connection stays fixed for life
• 43×43 mm Mounting Face: Seats perfectly on the most common 40×40 mm square legs; no gaps, load spreads evenly across the full surface
• 2 mm Gauge: Will not bend or warp under medium‑ and heavy‑duty use; provides a permanent solution to table wobble
• 60 mm Extended Body: Widely spaced screw points create a stronger connection and reduce the risk of separation over time
• Zinc‑Plated Finish: Rust‑resistant and colour‑stable under normal indoor conditions; maintains a clean, professional appearance
• Simple Installation: No special tools required; curved edges aid alignment — secure quickly with screws
• Superior Grip: Multi‑point fixing to both base and leg end; far more durable than single‑point connections
• Cost‑Effective 60‑Pack: Box pricing structure lowers the per‑unit cost for high‑volume and large‑scale work

Installation Guidelines

• Ensure mating surfaces on leg end and table frame are flat, clean, and solid
• Fit the bracket over the leg end — curved edges make alignment easy — then mark screw positions
• Select suitable screws of length matching material thickness
• Tighten screws gradually in a diagonal sequence; do not tighten from one side only
• Do not over‑tighten — material may split or the bracket may deform
• For high‑load points, fix from both sides where possible
• Use stainless‑steel screws in damp or humid environments
• Check screw tightness periodically; retighten gradually if loosening appears

Frequently Asked Questions

How does this differ from the flat table bracket?
Curved edges enclose the leg end for extra grip; fully prevents shifting and play especially on 40×40 mm legs, producing a more secure connection.

Which leg sizes does it fit?
Designed specifically for 40×40 mm square legs. Choose the Large Flat model for 50×50 mm legs.

Will it rust?
Zinc plating provides adequate protection for indoor use. The stainless‑steel version is recommended for areas with constant moisture or water exposure.

Are mounting screws included?
No — the box contains only the brackets. Fixings must be purchased separately to suit your material type.

How is pricing structured?
The listed price applies to one box of 60 units. Contact us for quantity pricing and detailed specifications.
